- Swing Cheek Micro Pulley by GM CLIMBING, 30kN breaking strength, both CE and UIAA certified, compatible with ropes up to 0.47 in or 12 mm in diameter. Providing both ball bearing and self-lubricating bushing sheaves to fit your applications. A functional micro pulley to tend hitches in rope climbing systems. Making an efficient redirect pulley in light rigging or hauling mechanical advantage systems.
- 【30kN High Strength】Made to withstand a breaking strength of 30kN, this micro pulley can build mechanical advantage systems of most kinds: haul your partner out of a crevasse, rig loads in mountaineering, pull out a stranded car, haul food and stuff out of reach when camping. Both CE and UIAA certified, a safe pulley for activities at height and in-depth, great pulley to be integrated into rope climbing systems and work-positioning lanyards.

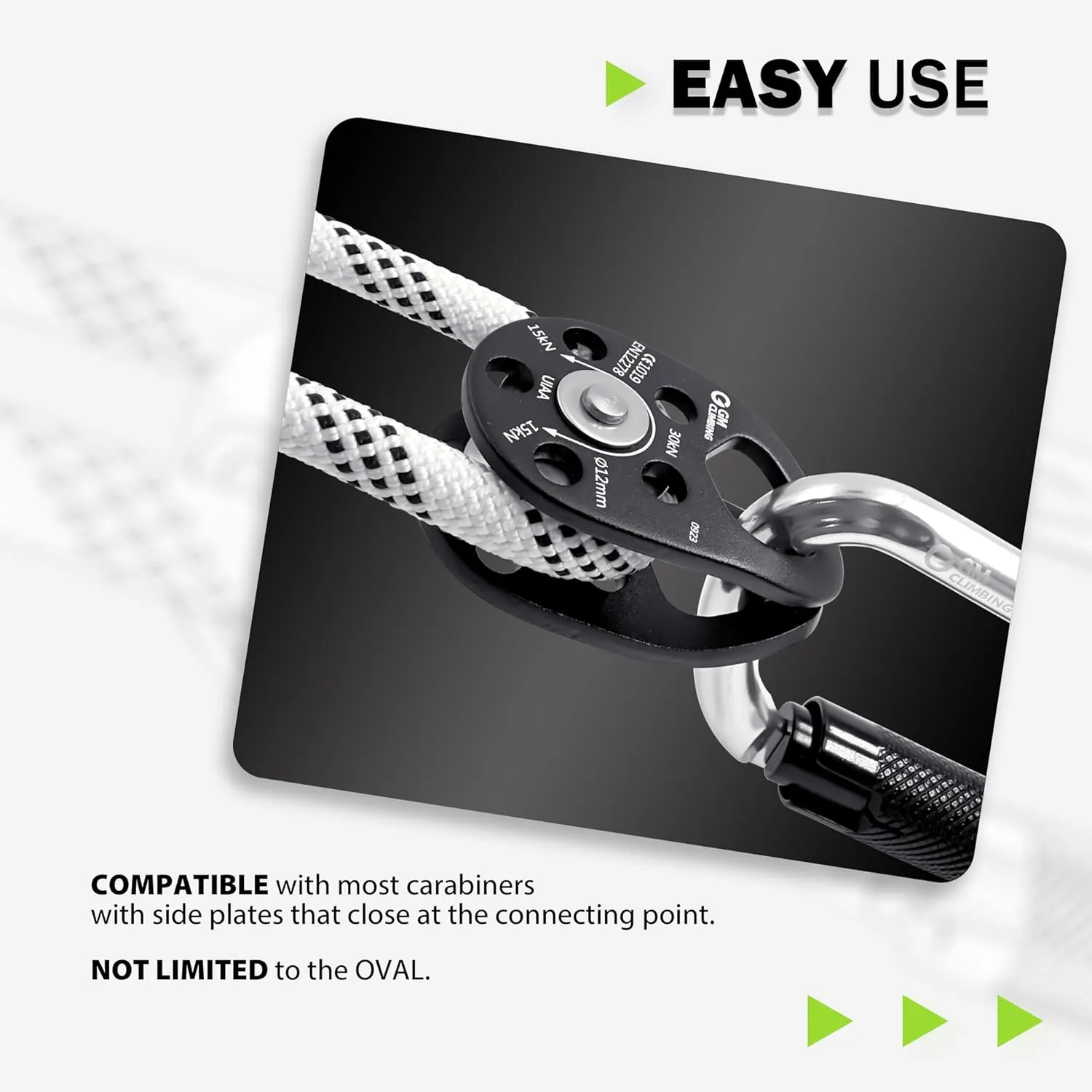

- 【EASY USE】The side plates feature a full 360-degree rotation to allow for easy opening. Installing the pulley anywhere on the rope is a swift process, and it can also be easily removed whenever needed. The side plates are curved to stay closed on the top connecting point. The pulley can accommodate carabiners of various shapes, not limited to the oval shape. Additionally, the curved plates provide ample space inside, allowing the rope to slide smoothly through.

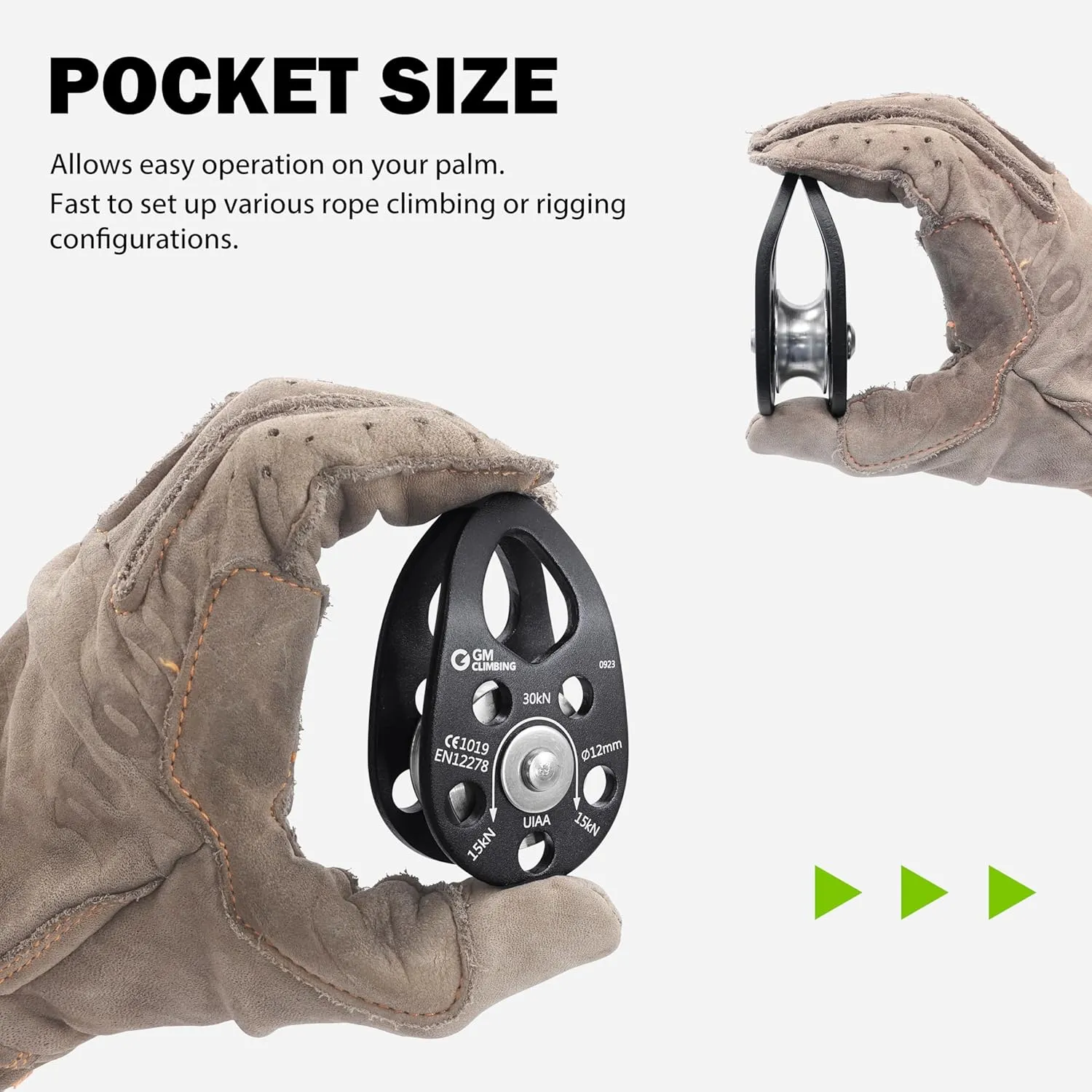

- 【POCKET SIZE】This pocket-sized pulley allows easy operation on your palm. Side plates can be split and closed with only one hand, speeding up the setup of rope climbing or rigging systems. Taking up little space in the gear pack and being lightweight, the pulley is convenient for outdoor carry, where weight and volume are crucial considerations.
- Ball bearing provides less contact area with the axle and produces less friction, making it excellent for high-speed rotation. Self-lubricating bushing is more efficient for transporting heavy loads. Both types of sheaves—ball bearing and bushing—are available for you to choose from to fit your applications.

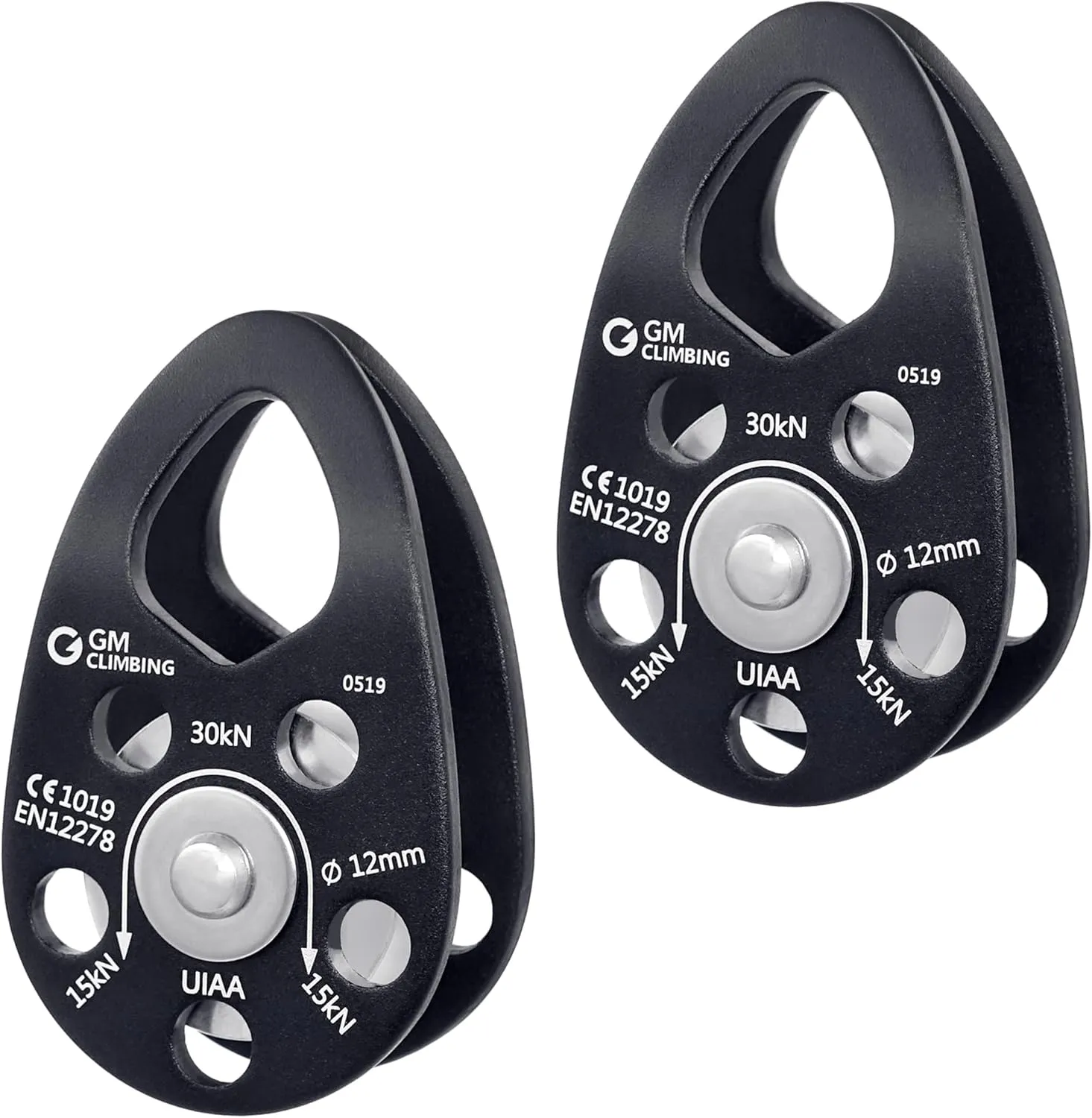

GM CLIMBING 30kN Swing Cheek Micro Pulley
Mechanical advantage of pulley is an awesome thing we can have in our daily life.
This micro pulley will help you get the maximum advantage with smooth rotation and easy use.

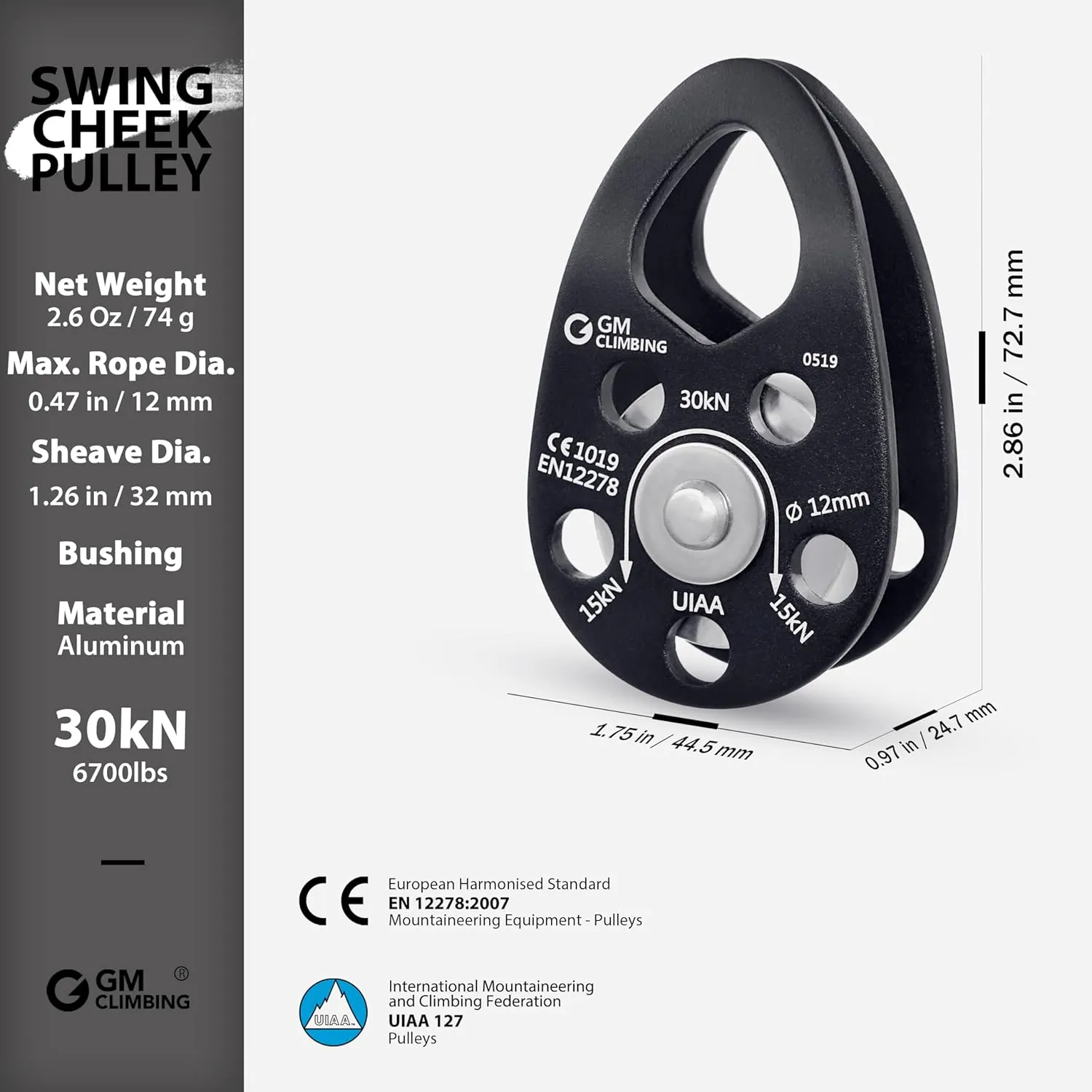

Specification
Sheave & Plate Material: Aluminum
Breaking Load: 30kN / 6700Lb
Dimension: 44.5 x 72.7 mm - 1.75 x 2.86 inch
Dia. of Sheave: 32 mm / 1.26 inch
Weight: 74g / 2.6Oz
Max. rope compacity: 12mm / 0.47inch
Blue-Ball bearing: less contact area with axle, more efficient with very little friction in system, excellent for high speed use
Black-Bushing: larger contact area with axle, much less wear for longer service life, suitable for slow rigging with heavy weight
Certification: CE1019 EN12278 / UIAA 127
Attention: Please don't put steel cable on the sheave of pulley.
