- 40kN Micro Double Pulley by GM CLIMBING, serves to create compact 4:1 or higher 5:1 mechanical advantage systems. Light, compact, and durable, Prusik-minding, compatible with ropes up to 12mm, CE and UIAA certified. Commonly employed for self-rescue, emergency hauling and dragging in mountaineering, as rappelling backups, for slackline tensioning, rigging in tree climbing, and more demanding scenarios.
- 【Multiply Forces】 Micro Double Pulley enables compact high-efficiency rigging by replacing two single pulleys. Functions to multiply forces that make it possible for a single person to control heavy loads with minimal effort. 【Prusik-minding】The side plates feature flat bottom that blocks the passage of Prusik knots, allowing the use of Prusik cords to configure a progress capture system that locks the load in place when tension is released.
- 【40kN, CE/UIAA Certified】 Made of advanced materials to withstand a super high breaking strength of 40 kN=2 x (10kN 10kN). CE and UIAA certified, the Micro Double Pulley complies with safety standards required across a wide range of operations, ensuring safe use in high-demand situations. Configure personal mechanical advantage systems that function to rig loads in mountaineering, rescue a stranded car or boat, or haul your partner out of a deep crevasse.
- 【Easy Use】With the moving side plates, there's no need to thread the rope through the pulleys from the far end. Simply rotate the side plates to expose the sheave wheels, allowing for quick rope installation and removal. Time-saving, particularly when modifying pulley configurations. The side plates close flush at the top, forming a single-point connection that offers universal compatibility with carabiners.
- 【Simplify Set-up】The bottom becket, integrated into the pulley's central plate, offers an extra rope attachment point, minimizing hardware and simplifying system configuration. 【High Efficiency】The ball bearing minimizes friction through point contact with the axle, ensuring smooth rotation and optimal efficiency, perfect for high-speed operations.

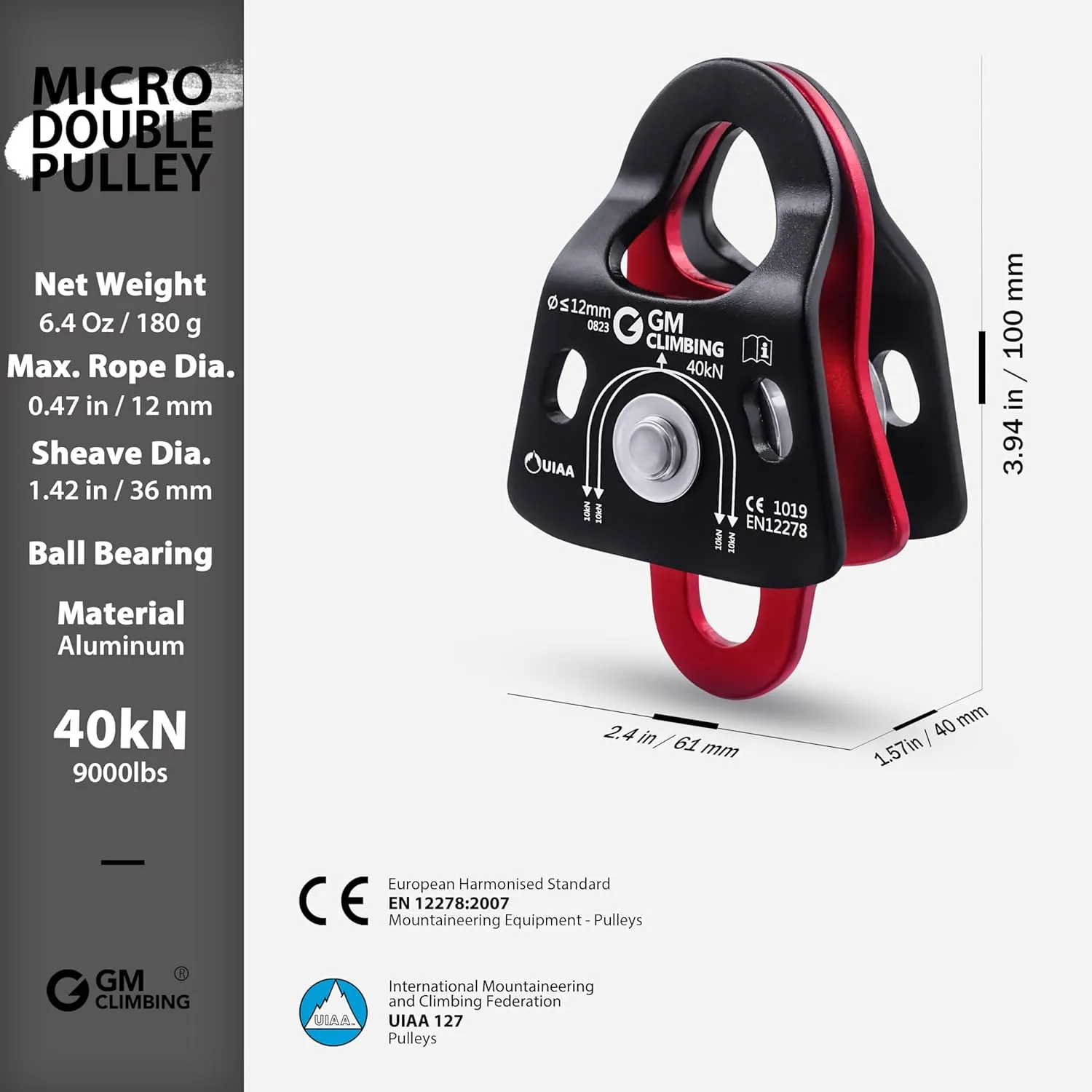

GM CLIMBING 40kN Micro Double Pulley
Specification
Pulley Type: Micro Double Pulley, Moving Plates
Dimension: 61 x 100 mm / 2.4 x 3.94 inches
Sheave Dia.: 36 mm / 1.42 inches
Weight: 180 g / 6.4 oz
Material: 7075 Aircraft Grade Aluminum, Ball Bearing
ATTENTION: Never slide steel cable over the sheave of this pulley!
Breaking Strength: 40 kN = 2 x ( 10 kN 10 kN )
Certificate(s): CE EN 12278, UIAA 127
