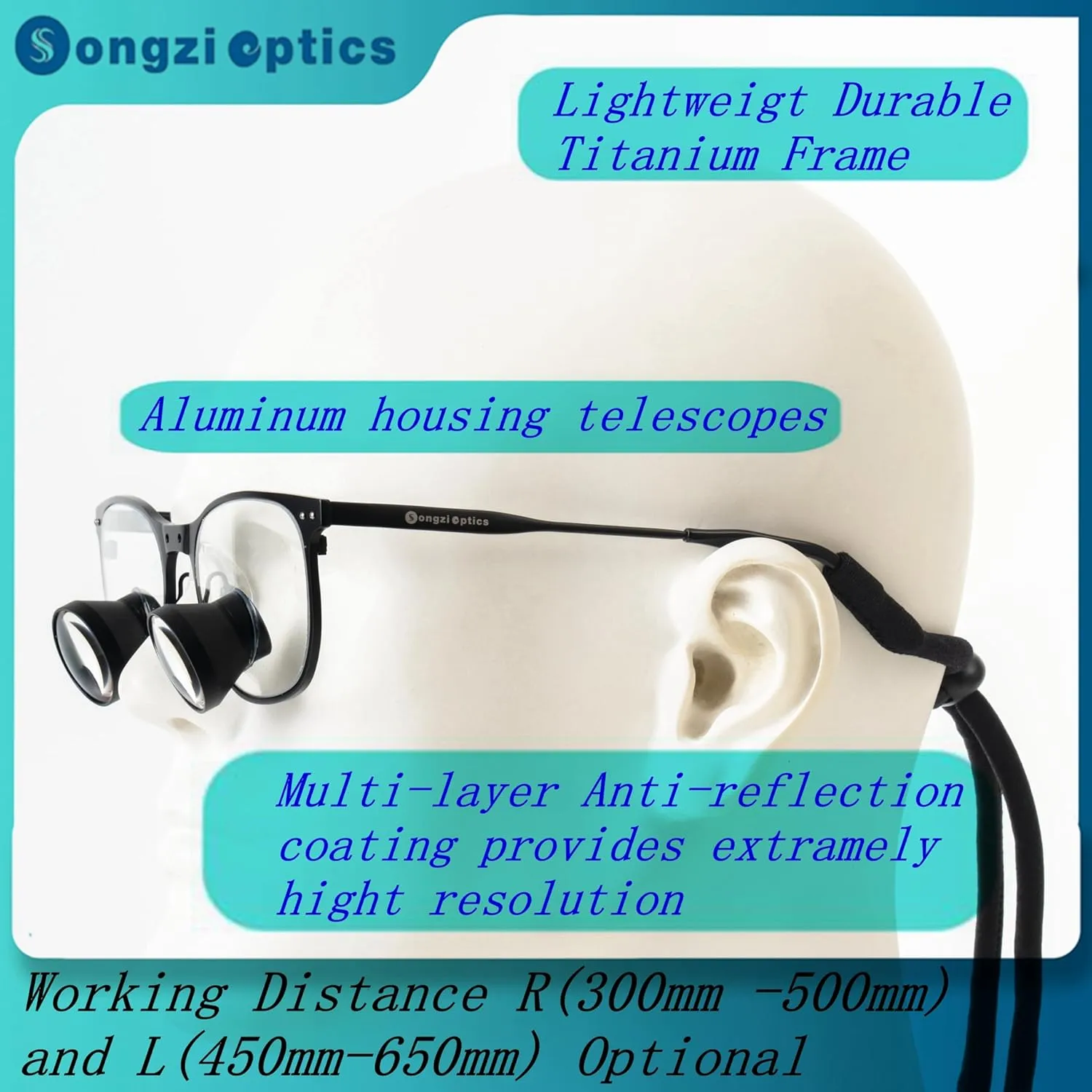

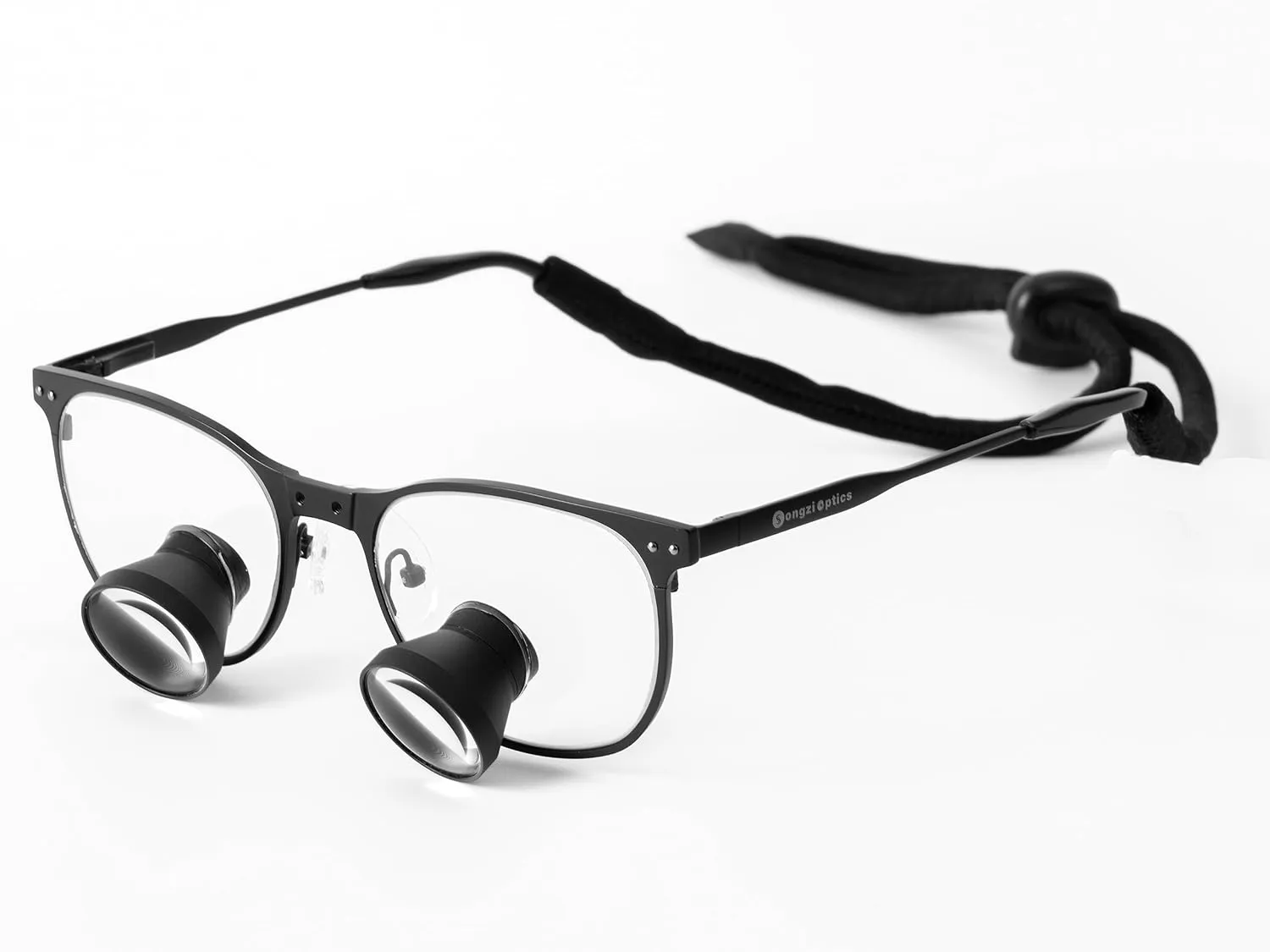

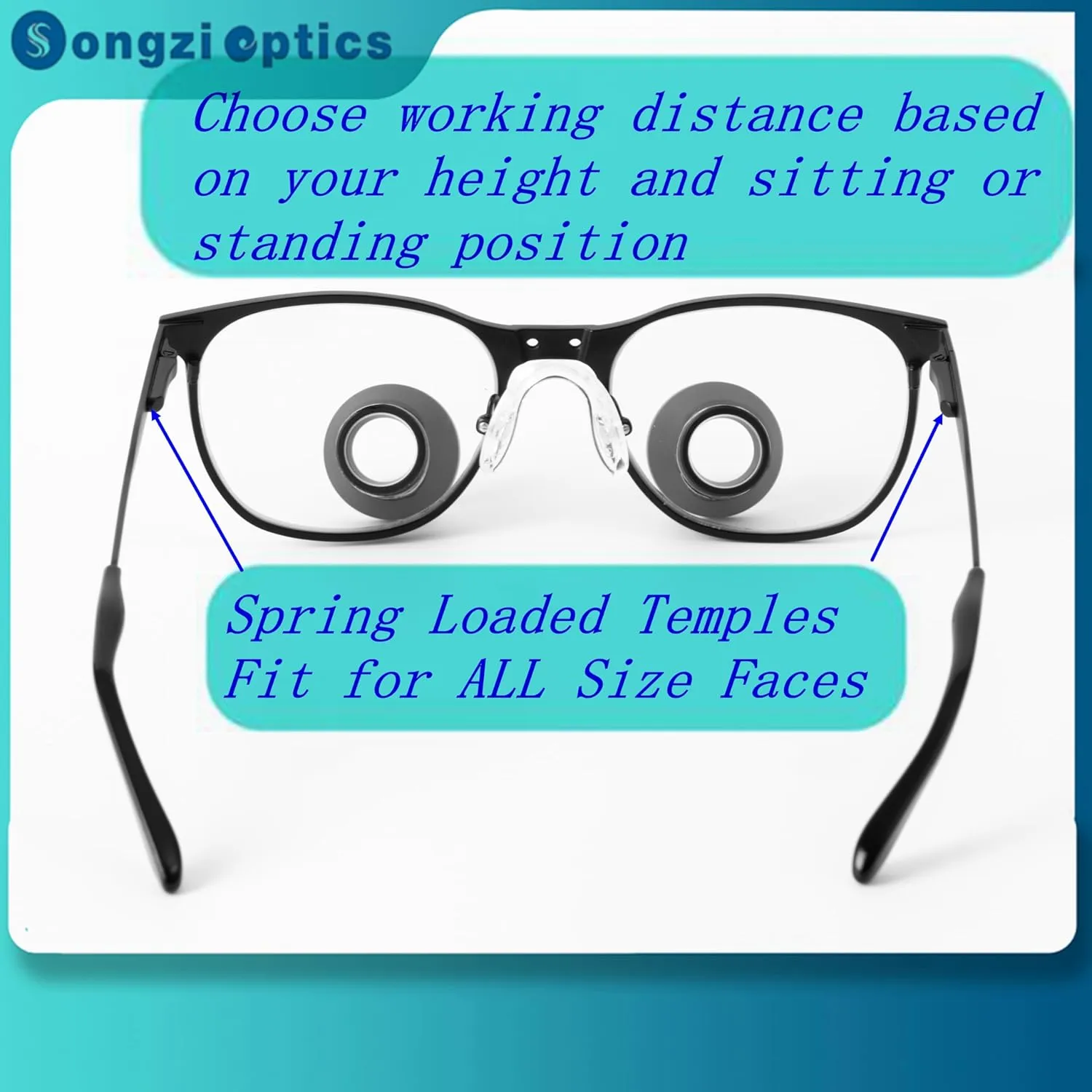

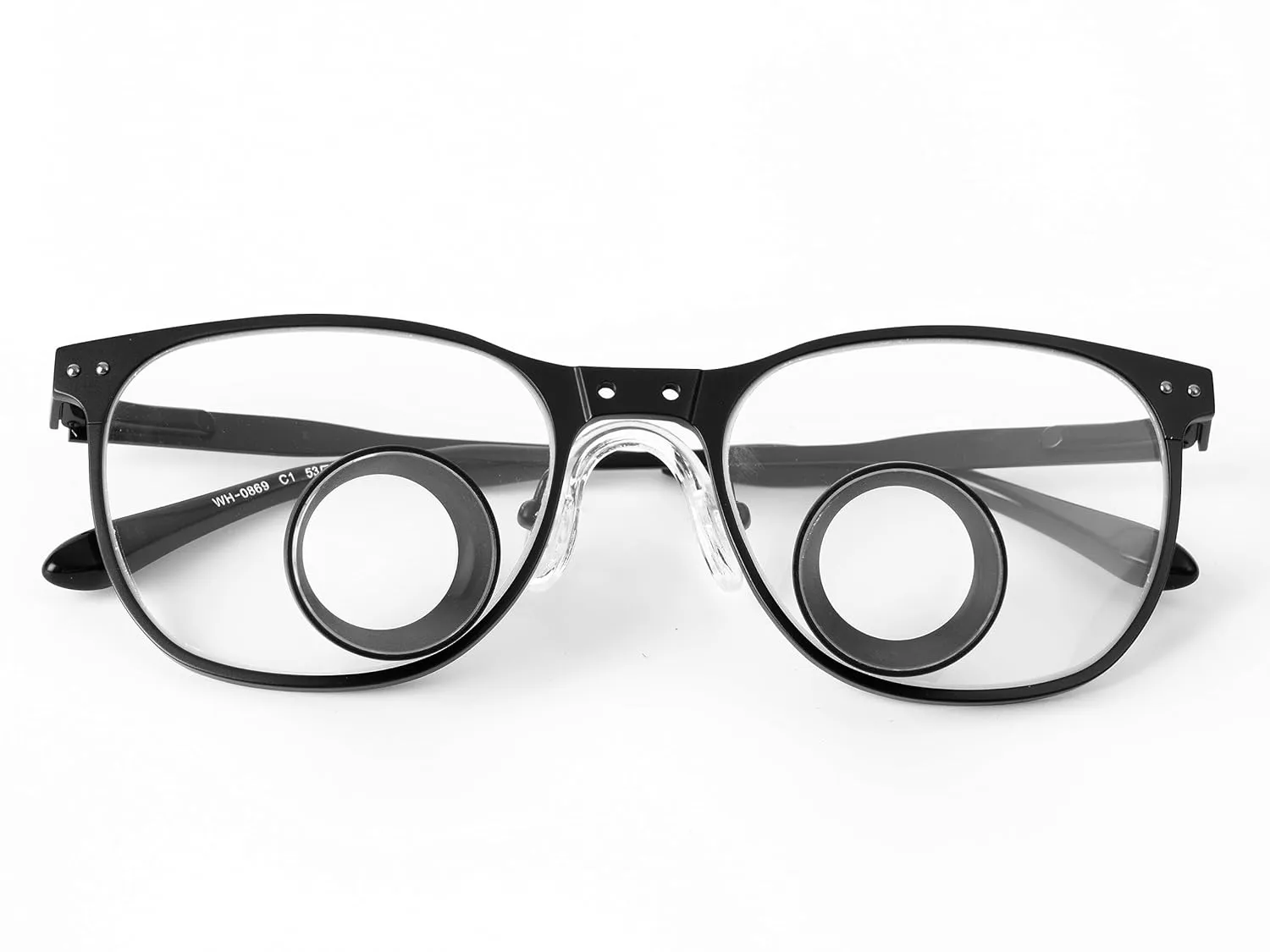

• 2.5X Loupes Field Of View: 150mm,Depth of field: 280mm, Working Distance 350mm -550mm,Weight: 45g.
• 3X Loupes Field Of View: 140mm. Depth of field:200mm ,Working Distance 350mm -550mm,Weight: 50g.
• 3.5X Loupes Field Of View:130mm.Depth of field: 200mm,Working Distance 350mm -550mm,Weight: 55g. Loupes view declination angle made as about 40 degree.
• Buyer can use PDCheck AR APP on phone, and save PD data screenshot, there are Far PD and Near PD. If you are a dentist, you need to choose Far PD, but need to reduce 4mm, for example Far PD is 66mm, that mean dental working distance Near PD should be 62mm, then you need to choose 62mm Near PD variation when place order. If you are a surgeon, you can use the APP Near PD data directly.
• If your Near Pupil distance is not included into loupes variations, please choose Other Near PD, and leave your Near interpupillary distance in the message and we will customize it according to your size.

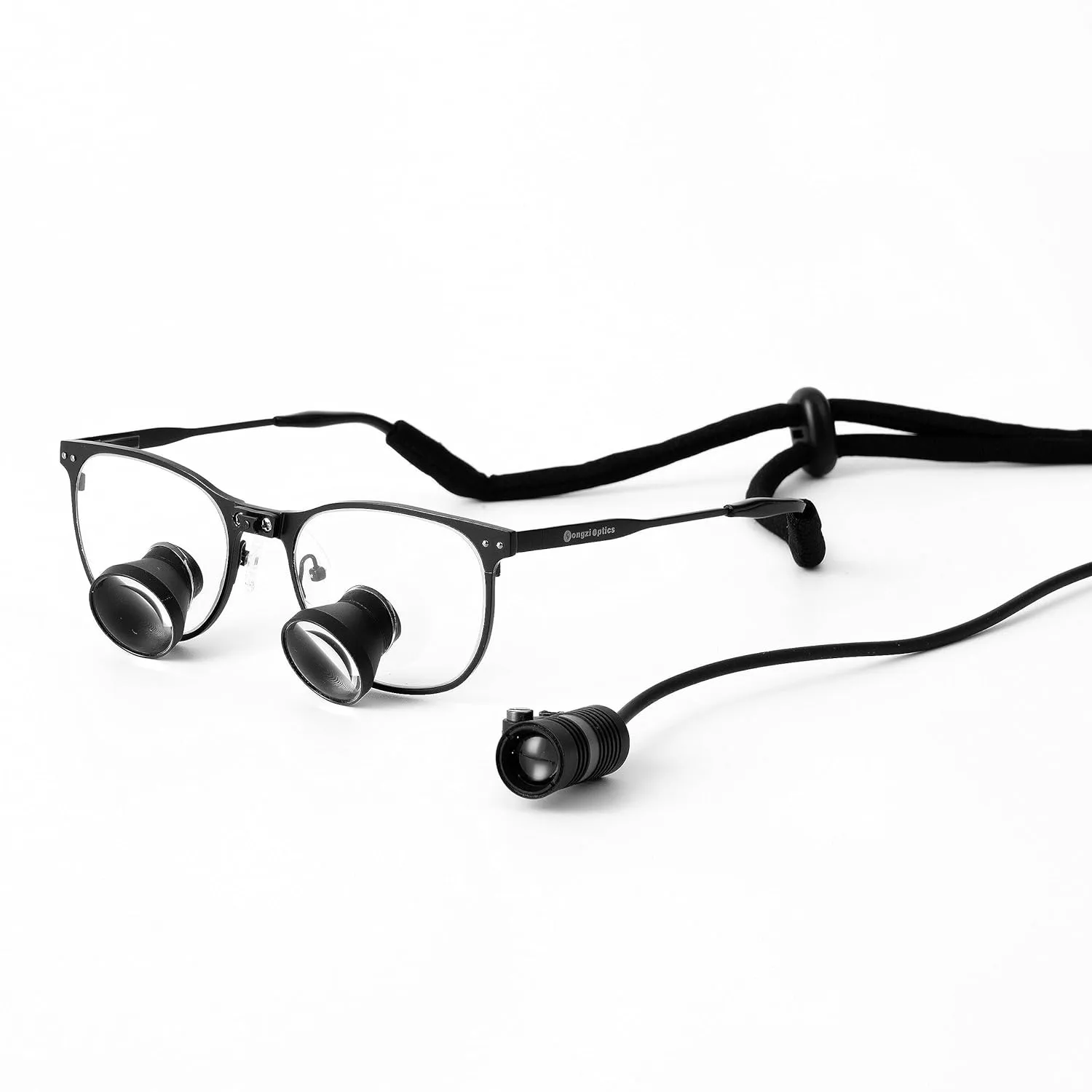

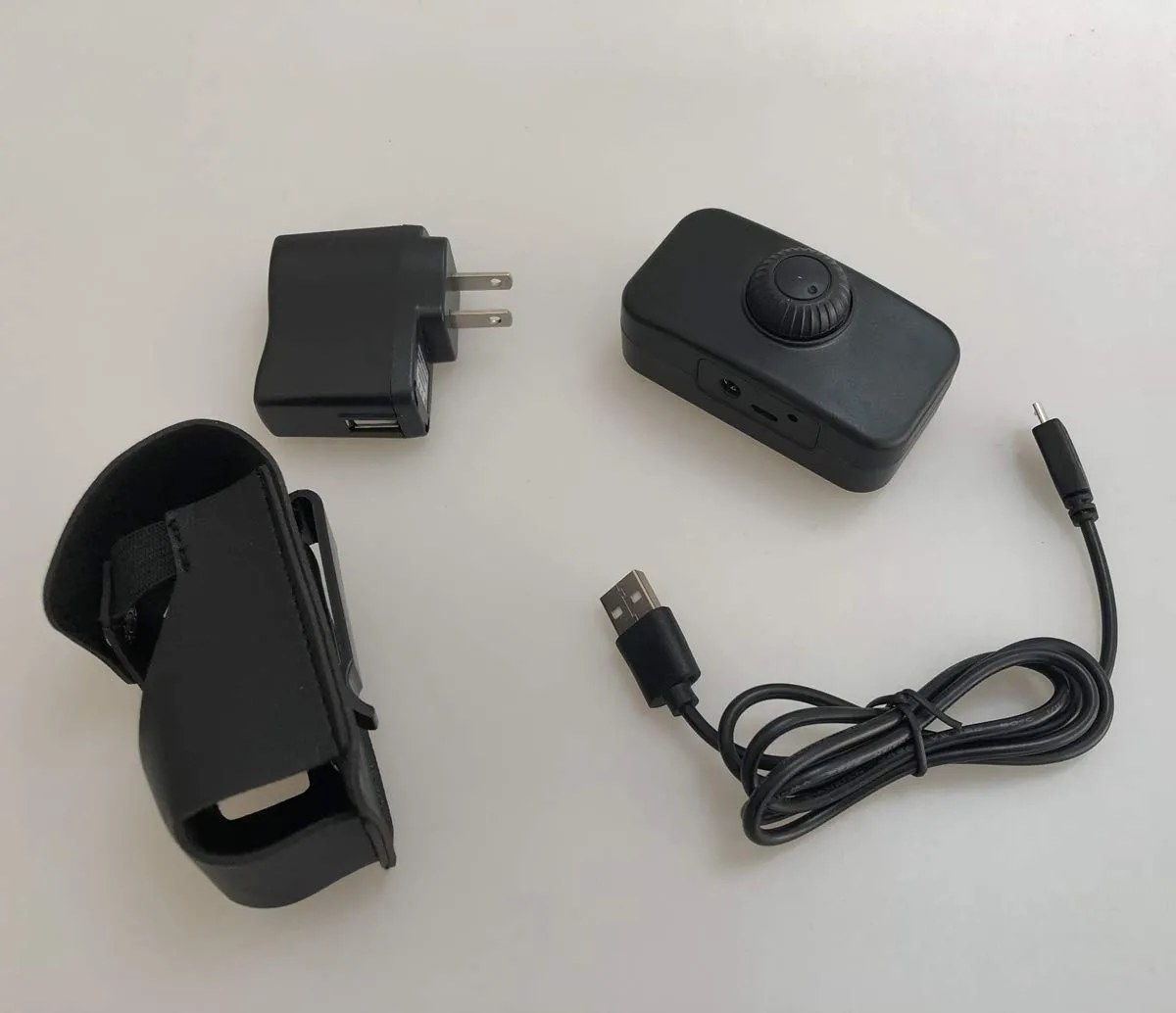

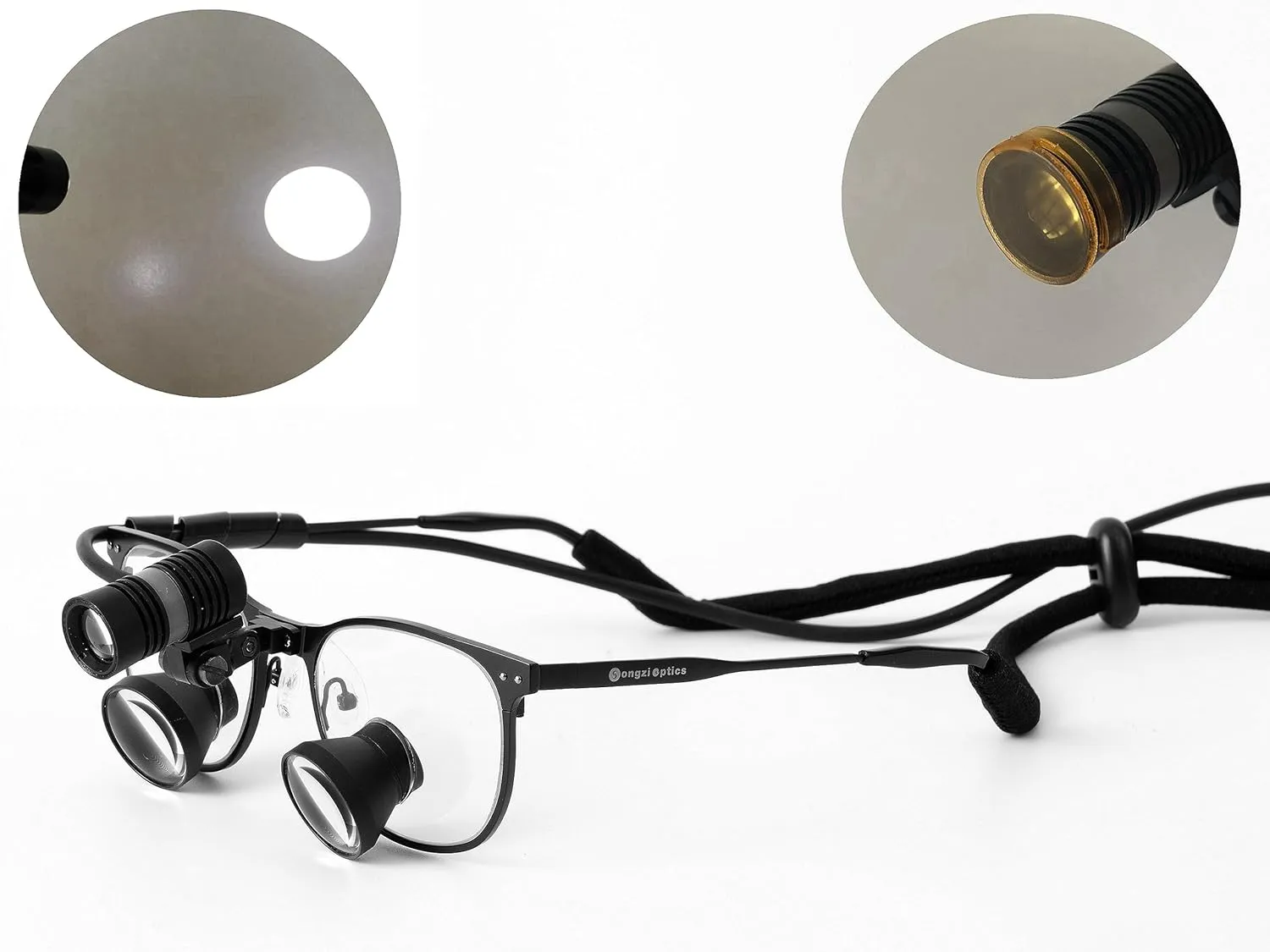

• Model Number:SZ08B, Light Head Net weight:8g,Light head housing material Special Aluminum,Light head size Diameter 20mm, length 35 mm.Highest illumination intensity 10,000-60,000Lux full variable intensity control, Color Temperature:6000k,advanced rechargeable polymer Li-Ion cells,LED can be used while charging.Light source 3W Light Emitting Diode (LED) ,Lamp Life:100000h,Adapter Input: 100-240VAC/50-60Hz, output: 5V.Battery run-time:4 hours, battery:1 piece,
